Watch the video below about the digital signage kiosk to get a comprehensive understanding of the features, applications, and operation tutorials of KosinTec digital signage kiosk.
With over 13 years of specialized kiosk manufacturing experience, KosinTec delivers robust Digital Signage Kiosk Solutions tailored for global B-End clients. We offer industrial-grade hardware and comprehensive flexibility, ensuring maximum visual impact and reliable 24/7 operation across diverse commercial environments.

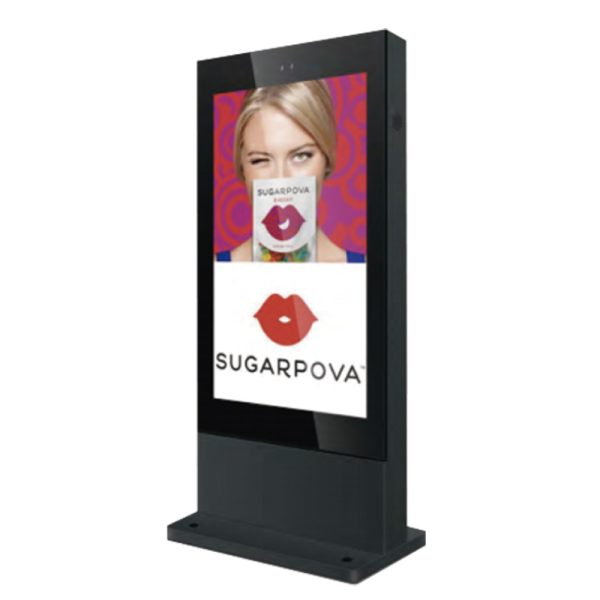

Versatile Form Factors: Our portfolio includes heavy-duty Outdoor Digital Signage Kiosks, professional Floor Standing Totems (up to 55-inch), and compact Wall Mounted displays.
Advanced Features: Solutions offer integrated touchscreens, extreme high brightness (up to 5000 nits), and specialized formats like Battery-powered portable units and unique Round Shape Displays.
Multi-Scene Application: Ideal for retail, F&B (menu boards), wayfinding, and self-service, backed by 13 years of proven, reliable system manufacturing expertise.
Custom Sizing: Screen sizes range from mini 7-inch tabletop units up to large 55-inch Kiosks, fitting every commercial need.
 |

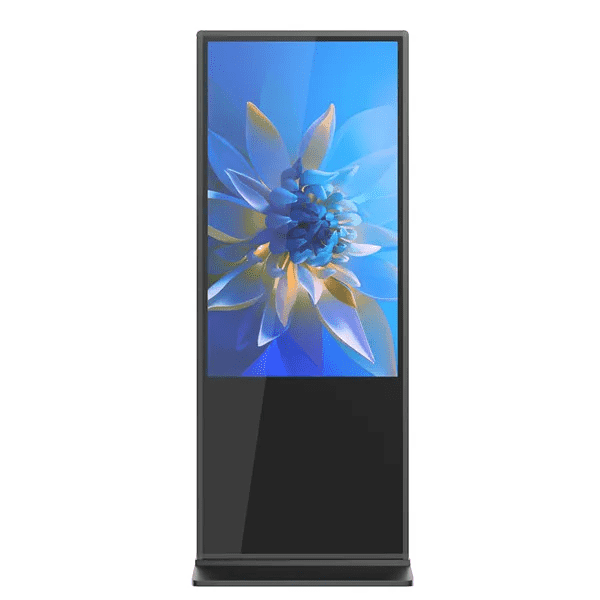

KosinTec provides commercial-grade, floor-standing digital signage kiosks built with robust IPS technology and integrated Android systems, designed for seamless remote management and high-impact visual display.
| Category | Component / Feature | Specification / Detail |
I. Core Hardware & Display | ||
| Panel Technology | Screen Type | IPS Commercial Hard Screen (Thermo stability, Broad Perspective) |
| Screen Sizes | Size Range | 43" / 49" / 55" / 65" |
| Resolution | Standard Resolution | 1920 x 1080 (Full HD, 16:9 Aspect Ratio) |
| Visual Performance | Brightness / Contrast | 450 nits Brightness; High Contrast 5000:1 (Key Feature) |
| Viewing Angle | Wide View | 178° / 178° |
II. Integrated System & Processing | ||
| CPU | Processor Model | RK3288 Quad-core ARM Cortex A17 |
| Memory / Storage | RAM / ROM | 2GB RAM / 8GB ROM |
| Operating System | Platform | Android 7.1 |
| Interactivity | Touch Function | 10-point touch Sensitive touch experience (Optional feature) |
III. Connectivity & Peripherals | ||
| Wireless | WiFi & Bluetooth | 2.4G/5G 802.11b/g/n/ac WiFi, Bluetooth 4.2 |
| Input Ports | USB | USB 2.0 × 2 |
| Audio Output | Speakers | 2 x 8W 8Ω |
IV. Software & Operational Control | ||
| Remote Management | CMS Option | Optional CMS management software (Cloud Bases CMC Upgrade) for remote publishing. |
| Scheduling | Power & Content | Support time-scheduled programs; timing boot / regularly shutdown (Customizable) |
| Content Delivery | Update Method | Remote operation / One-click publishing via the web |
V. Product Advantages & Customization | ||
| Customization | OEM/ODM Service | OEM/ODM customized to meet different project needs. |
| Design Feature | Aesthetic | Slim, sleek, and modern design; easily installed/moved. |
| Panel Quality | Professional Use | Commercial grade LCD screen technology, designed for business. |
 |

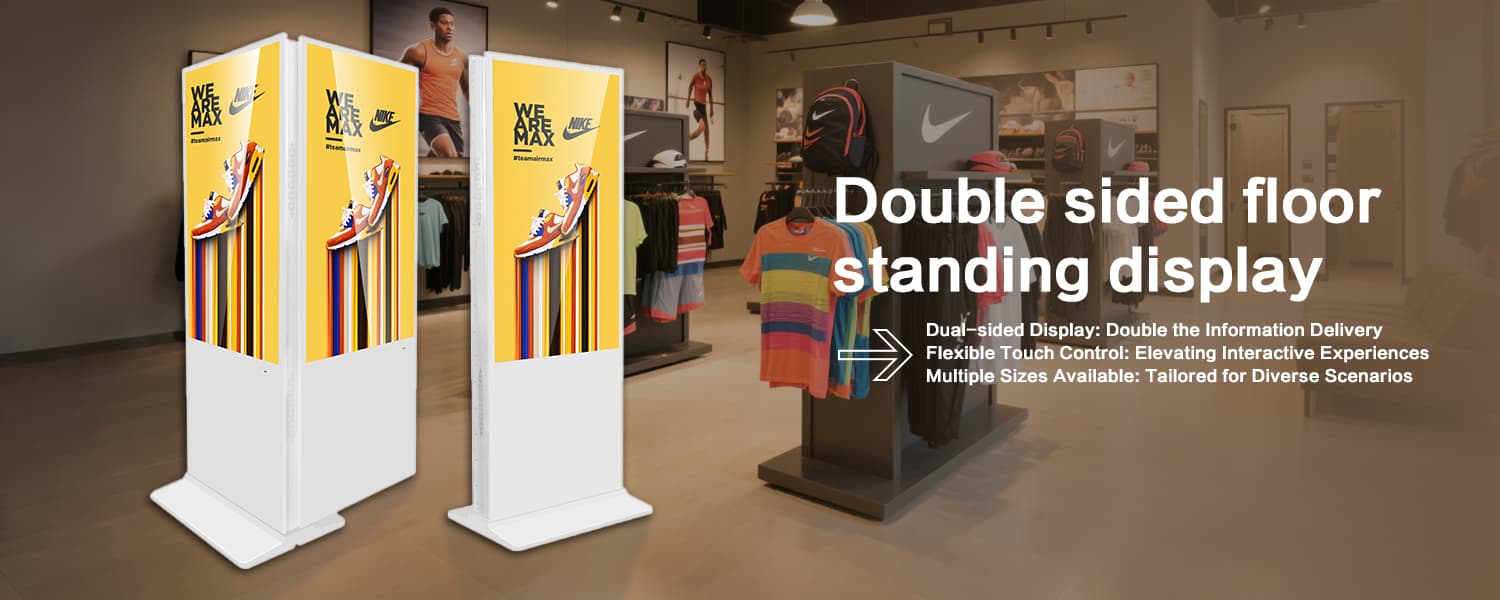

How Much Does a Digital Signage Kiosk Cost?The cost of a digital signage kiosk is highly variable, depending on configuration. The primary cost drivers are the commercial-grade display size (43" to 65"), brightness (450 nits up to 5000 nits for outdoor use), and optional 10-point touch functionality. Typically, hardware costs for standard models range from $1,500 to $5,000 USD per unit. This pricing excludes optional Cloud CMS subscriptions and custom OEM/ODM requirements. For detailed, accurate pricing, please contact our KosinTec expert team. |

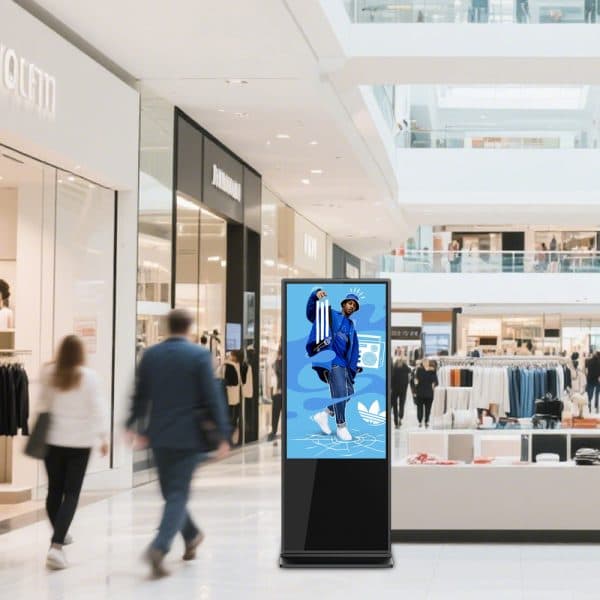

R&D & Fabrication: Starts with final design approval (OEM/ODM). Precision CNC machining creates the durable metal enclosure.
Component Integration: Commercial-grade IPS display panel, touch screen, and internal media player (CPU/OS) are securely mounted into the frame.
System Assembly: Internal wiring, power supply, and I/O port integration are completed.
Software Loading: The OS is set up, and the Cloud CMS platform is configured for remote management.
Quality Assurance (QA): Each unit undergoes rigorous testing, including a mandatory 48-hour burn-in test under load.
Packaging & Dispatch: Final inspection before protective packaging and shipment to the client.

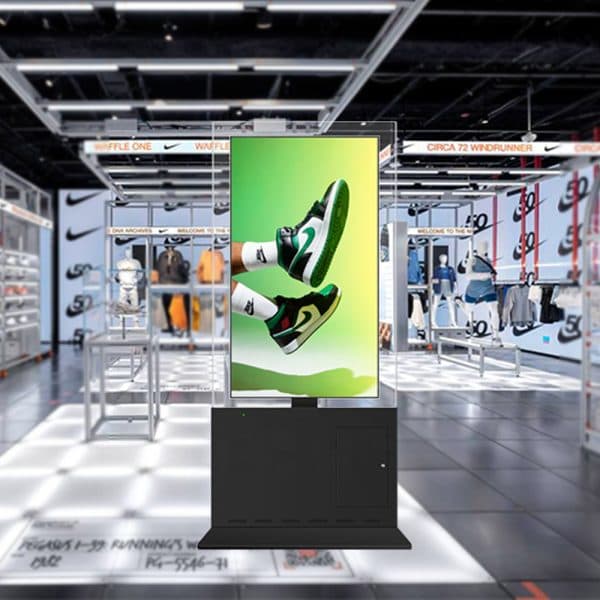

Common applications for Digital Signage Kiosks include:
Retail Advertising & Promotions
Interactive Wayfinding & Directories
Self-Service Ordering & Payments (F&B, Retail)
Visitor Check-in & Registration (Corporate/Healthcare)
Queue Management & Ticket Issuance
Public Information & Emergency Alerts
Branding & Corporate Communications

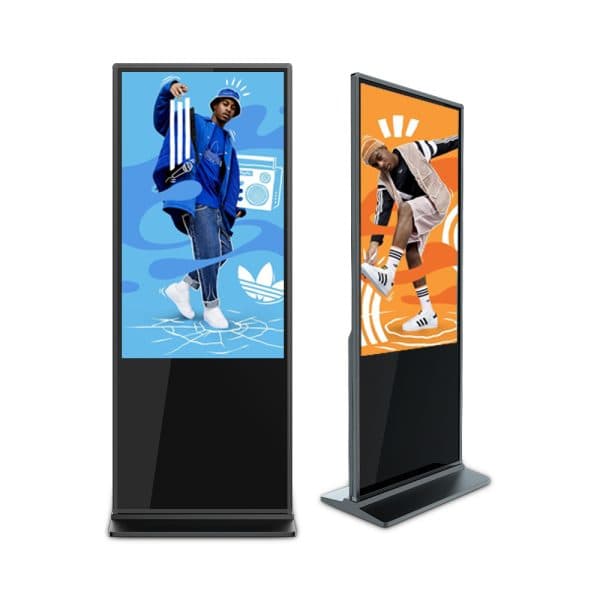

Enhanced Customer Engagement: Provides interactive, personalized experiences via touchscreens.
Improved Operational Efficiency: Facilitates self-service ordering, check-in, and payments, reducing staff load.
Dynamic Advertising: Allows for instant, high-impact promotional updates and targeted messaging.
Space-Saving Design: Offers a high-visibility, freestanding platform without requiring wall space.
Reduced Wait Times: Streamlines processes like wayfinding, queue management, and registration.
24/7 Reliability: Built with industrial-grade components for continuous commercial operation.
Centralized Control: Enables easy, real-time content management across multiple locations via CMS.

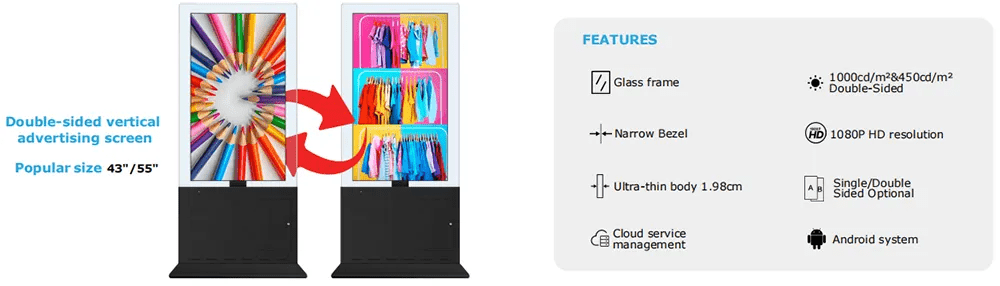

| Phase | Step / Action | Key Detail |
I. Installation Setup | 1. Site and Power Check | Ensure the floor is level and stable. The power outlet must be grounded. |
| 2. Position and Secure Kiosk | Place the Digital Signage Kiosk vertically. Large Free Standing models should be bolted down to prevent tipping. | |
| 3. Network Connection | Prioritize using a wired RJ45 connection. If using Wi-Fi, verify signal strength is robust and stable. | |
II. Initial Operation | 4. First Boot and System Settings | Power on, configure the correct time zone and date in the system settings. |
| 5. CMS Content Configuration | Log into your Cloud CMS platform, upload your content (ads/info), and set the playback schedule. | |
| 6. Remote Management Test | Attempt to update content or restart the device remotely (via phone/PC) to ensure CMS connectivity is stable. | |
III. Routine Maintenance | 7. Screen and Enclosure Cleaning | Use a soft, dry, or slightly damp cloth for wiping. Never use corrosive chemical solvents. |
| 8. System Check | Periodically inspect ventilation openings (top/bottom) for dust blockage, and confirm the device adheres to its scheduled power ON/OFF times. |
 |
| For detailed installation instructions, you can click to watch our Digital Signage Kiosk video tutorial |
As a premier kiosk manufacturer, KosinTec addresses all buyer doubts by fusing 13 years of OEM/ODM expertise with industrial-grade technology, ensuring your investment in a Digital Signage Kiosk is reliable, efficient, and future-proof.
We ensure your investment delivers continuous performance by utilizing industrial-grade technology that is built to last in any climate.
We eliminate failure due to continuous use. Our Digital Signage Kiosks utilize 24/7 Industrial Grade Components. For harsh sites, our Outdoor Digital Signage Kiosks feature IP65/IP67 protection and specialized temperature controls, guaranteeing operation even in extreme ranges ($text{-20^circ C} sim text{50^circ C}$).
We eliminate washout risk with Ultra-High Brightness Displays (up to 5000 nits), ensuring content is perfectly readable in direct sunlight. Furthermore, TCO is minimized: our All-in-One Integration eliminates the need for external media players, simplifying provisioning and offering transparent factory pricing.
KosinTec provides the flexibility and management control needed to maximize the utility and visual impact of your digital signage kiosk network.
We solve network headaches through Seamless Cloud CMS Integration. Every Digital Signage Kiosk is optimized for remote management, allowing instant, one-click publishing, system diagnostics, and precise scheduling across your entire network without requiring on-site technical expertise.
We eliminate creative limitations, leveraging our 13 Years of OEM/ODM Expertise. We offer specialty designs, including Digital Signage Round Kiosks and Stretched Bar Displays, to achieve bespoke architectural fit. Deployment freedom is ensured by providing easily portable Free Standing Digital Signage Kiosks and Battery-Powered Digital Kiosks (up to 14 hours runtime), allowing wire-free installation anywhere.
 |

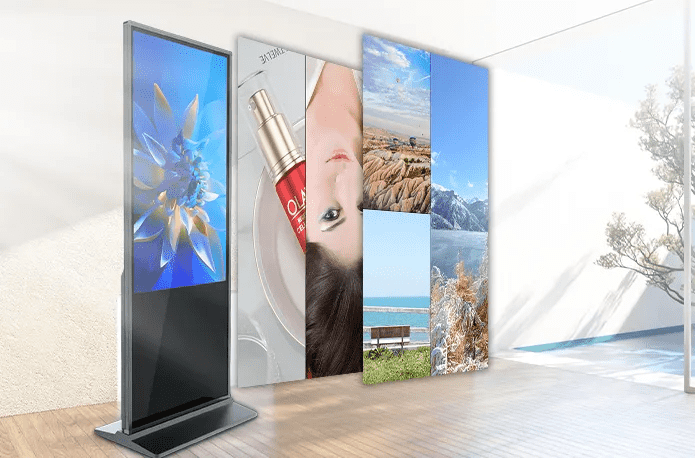

Customizing a digital signage kiosk is the crucial step in transforming standard hardware into a high-impact, integrated communication asset. KosinTec guides buyers through every detailed option, ensuring the final product guarantees both architectural fit and long-term operational resilience.
This stage defines the foundational requirements necessary to ensure optimal TCO and environmental compatibility.
Options: Indoor (Standard), Semi-Outdoor (High Brightness), Full Outdoor (IP-rated).
KosinTec Detail: Defining IP65/IP67 rating, required operating temperature ranges ($text{-20^circ C} sim text{50^circ C}$), and anti-corrosion material selection.
EXPERT REMINDER: Never compromise on the IP rating for outdoor digital signage kiosks. A lower rating drastically increases failure risk due to humidity and thermal shock, negating all initial cost savings.
Options: Standard Brightness (450 nits), High Brightness (1500 nits), Ultra-High Brightness (up to 5000 nits).
KosinTec Detail: Selecting the necessary nit level based on ambient light surveys (e.g., 5000 nits for direct sun visibility).
EXPERT REMINDER: High brightness requires specialized active cooling systems. Ensure the manufacturer details the integrated thermal management solution to prevent isotropic blackouts and premature panel aging.
These options relate to the physical device and user interaction capabilities.
Options: Free Standing Kiosk (Totem), Wall Mounted, Double-Sided, or Specialty Shapes.
KosinTec Detail: Utilizing 13 years of OEM/ODM expertise to customize bezel color, logo placement, and unique forms (e.g., Digital Signage Round Kiosks, Stretched Bar Displays).
EXPERT REMINDER: For custom shapes, request detailed structural integrity testing documentation. Ensure the chosen material (e.g., tempered steel) maintains stability for the full expected lifespan.
Options: Non-Touch, 10-point PCAP Touch, IR Touch. Integrated Camera, QR Scanner, POS terminals.
KosinTec Detail: Customizing the integration of sensors (e.g., motion/presence sensors) or physical interfaces (Button combination displays) tailored to the specific application (e.g., self-service ordering).
EXPERT REMINDER: If the kiosk is used for payments/sensitive data, ensure the integrated OS and touch components meet current industry security and encryption standards upon delivery.
This phase impacts long-term maintenance, remote control, and scalability.
Options: Android OS (for simplicity/low cost), Windows (for complex software/licensing needs), or Monitor Version (external player required).
KosinTec Detail: Customizing CPU (e.g., RK3288), RAM, and storage based on required content complexity (e.g., 4K video vs. static images).
EXPERT REMINDER: The choice between Android and Windows impacts long-term licensing and security patching costs. Factor future software updates into your final TCO calculation.
Options: Wired Ethernet (RJ45), Wi-Fi (2.4G/5G), Cellular (4G/5G modem), Power over Ethernet (PoE).
KosinTec Detail: Configuration for seamless Cloud CMS Integration for unified remote diagnostics and instant content publishing. Providing options for Battery-Powered Digital Kiosks for temporary or mobile deployment.
EXPERT REMINDER: For mission-critical deployments, always demand a dedicated management port (or dual network redundancy) that is separate from the public Wi-Fi access point to ensure uninterrupted CMS communication.
|
|

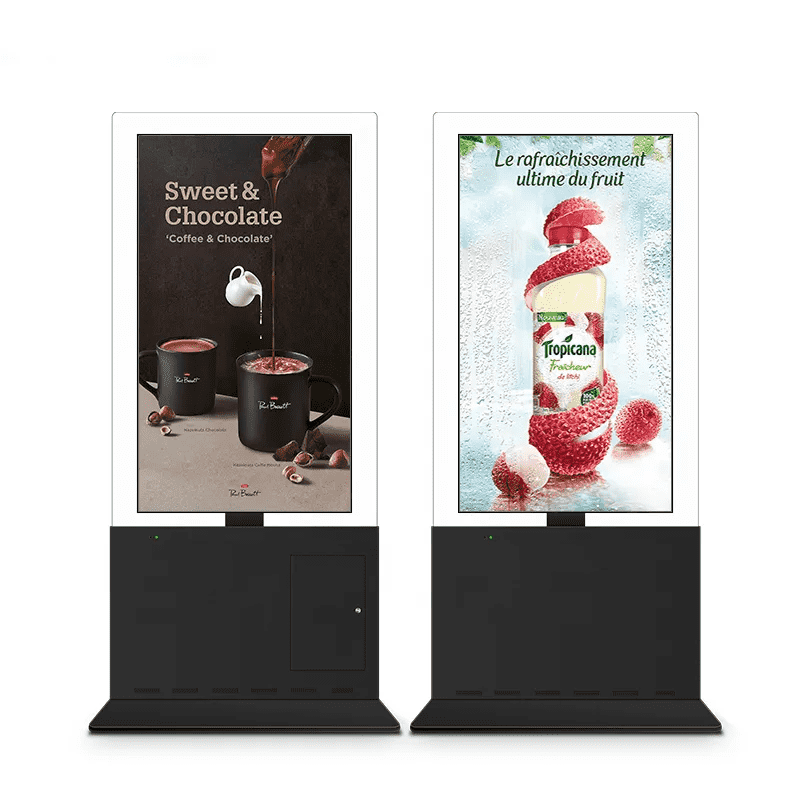

13+ Years of Expertise: Proven track record with 13 years of specialized B-End manufacturing, demonstrating deep market and quality expertise.
Industrial Reliability: All Digital Signage Kiosks feature 24/7 Industrial Grade Components built for maximum longevity and minimal failure risk.
Cutting-Edge Technology: Solutions include Outdoor Digital Signage Kiosks with IP65/IP67 protection and 5000 nits brightness for ultimate environmental performance.
Superior TCO & Pricing: All-in-One integration (built-in OS/CPU) minimizes external hardware costs, supported by transparent Factory Pricing.
Full Customization (OEM/ODM): Unmatched flexibility, offering specialized formats like Round Digital Signage Kiosks and Stretched Bar Displays to meet unique architectural needs.
Comprehensive After-Sales Support: Guaranteed technical assistance and centralized remote management via our optimized Cloud CMS platform for continuous operation.

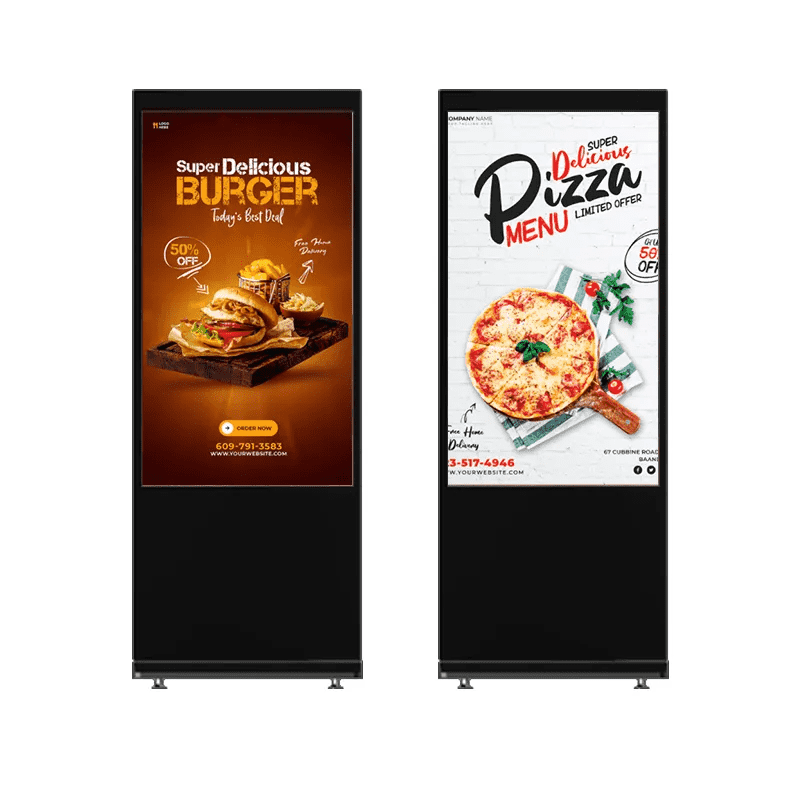

Purchasing a digital signage kiosk is a strategic infrastructure investment requiring forensic analysis of deployment risks. As a professional digital signage kiosk manufacturer, KosinTec advises buyers to adhere to these expert-level guidelines to ensure optimal ROI and longevity.
The deployment location dictates 80% of the hardware specification.
Thermal Resilience (Temperature/Seasonality): Demand confirmation that the operational temperature range spans $text{-20^circ C} sim text{50^circ C}$, requiring integrated cooling/heating systems. Expert Tip: Verify the Thermal Dissipation Rate (TDR) for high-load processors to prevent system throttling during summer peaks.
Sunlight & Visibility (Solar Load): Assess the maximum direct sun exposure hour. For sunlight-facing areas, specify Ultra-High Brightness (4000 to 5000 nits). Critical Warning: Failure to account for solar load causes Isotropic Blackout (TFT panel damage) within months, rendering the screen permanently black.
Moisture & Protection (Humidity/Rain): Outdoor Kiosks must meet IP65/IP67 standards, ensuring no ingress from dust or high-pressure water.
The intended application determines necessary features, resolution, and interactivity.
Traffic Flow & Viewing Distance: Use the Distance-to-Height Ratio for screen sizing. For high-speed traffic, a larger screen is needed. Expert Detail: Calculate required resolution based on minimum dwell time; 4K resolution is often unnecessary if the average viewer stands more than 5 meters away.
Interactivity Needs: For high-traffic, transactional use (self-ordering), PCAP (Projected Capacitive) 10-point touch is mandatory for durability and responsiveness. For simple information browsing, standard IR touch may suffice.
Space & Aesthetics: Assess physical space. For narrow hallways, Stretched Bar Displays (custom OEM/ODM) or ultra-slim Floor Standing Kiosks are required. Avoid bulky enclosures that obstruct pedestrian flow.
Your manufacturer is your insurance against operational failure.
Experience & Focus: Choose a manufacturer with verifiable B-End commercial expertise (13+ years). Confirm their focus is on industrial durability, not repurposed consumer components.
QA & Testing Protocol: Insist on confirmation of a minimum 48-hour burn-in test for every unit under load. Confirm they guarantee 24/7 Industrial Grade Components for long-term reliability.
TCO & Support: Prioritize suppliers offering transparent Factory Pricing and All-in-One Kiosks (CPU/OS integrated) to lower TCO. Verify long-term support and Cloud CMS remote diagnostic capabilities.
Choose KosinTec to secure a Digital Signage Kiosk solution backed by specialized manufacturing intelligence.
